Spa and above-ground pool heaters for on demand heat.

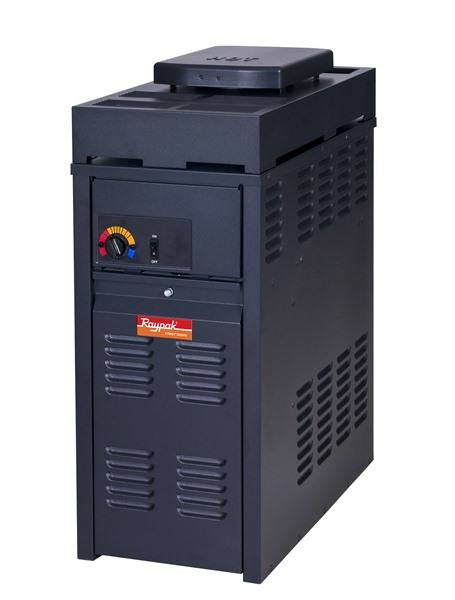

The Raypak Versa 130 is the perfect choice for above ground pools and spas. The Versa 130 has up to 30% more BTU's than the competitors above ground pool heaters. More BTU's means quicker heat up. Extend your swim season, open your pool earlier and close it later. Your pool is always ready when you have a Raypak on duty.
PolyTuf Textured Powder Coating: The Raypak gas heater has a polyester-coated, non-corrosive cabinet that is more durable than solventborne- and waterborne-coated metal cabinets. Every piece of sheet metal goes through a 7-stage wash system, making certain the powder paint has a perfect bond. Underneath the tough, yet beautiful finish you will find galvanized metal that offers superior rust prevention and years of durable service.
Wind-Resistant Design: No need for fans to combat drafting problems. This heater is designed to draft naturally in outdoor installations with its exclusive low-profile design. It is so thoughtfully and carefully designed it actually protects itself from the things that tend to stifle ordinary pool and spa heaters. It delivers uninterrupted heating performance regardless of falling leaves, wind, airborne debris, rain, downdrafts, updrafts, sleet, snow, etc.
Polymer Headers: Polymer headers prevent rust stains from harming your pool or spa’s surface, giving you years of trouble-free swimming pleasure.
All-Copper-Fin-Tube Heat Exchanger: The fin tubes of the heat exchanger are each made from a single piece of extruded copper. This integral-fin design allows maximum heat transfer to be attained and maintained. Cupro-nickel is also available as an optional upgrade.
Stainless Steel Tube Sheet: Stainless steel tube sheets are used on all Raypak gas heaters. This allows for a completely nonferrous waterway, leaving your pool truly rust-free.
2" and 1-1/2” Water Connections: Supplied with every Raypak heater is a set of 1-1/2" PVC hose connections to make your installation secure and effortless. Easily accommodates 2” plumbing with optional adapters.
Burner Tray: Every burner tray is built to last, from the stainless steel burners to the aluminized metal used in the heat sensitive areas. Innovative design allows for the easy removal of the tray and burners for servicing.
Fire Tile: A ceramic fiber combustion box keeps your heater running efficiently while keeping the outside jacket cool. By using this space-age material the heater won't retain residual heat after it is turned off, allowing it to be installed without the use of costly metal heat sinks.
Fuel-Efficient: Energy-smart Raypak heaters consistently achieve the highest efficiency ratings. They exceed all federal and state standards.
Electronic Ignition Model: Electronic Ignition: Raypak electronic ignition heaters come standard with direct spark ignition flame safety controls. What this means is that the heater only comes on when there is a call for heat. This provides an energy-efficient way to control your heater’s gas usage by eliminating the need for a continuous pilot.
Electronic Ignition Model:Dual Voltage 120/240v: The Raypak electronic heater can easily be hooked up to 120v power via its own 3-1/2 foot built in power cord with 3-prong plug. It can also be wired for use with a conduit connection, this allows the installer to wire 120/240v directly to the transformer. No other small heater offers you this much flexibility.
Millivolt Model: Mechanical Thermostat: The Raypak millivolt gas heater comes with one mechanical thermostat. This control allows you to set your pool or spa temperature precisely at your favorite setting.
Millivolt Model: Millivolt Controls: No power source is required for the Raypak Millivolt heater. All operating electricity is supplied by the pilot thermocouple.
ISO 9001: We are proud to be an ISO 9001 registered manufacturing plant. It’s one more reason why Raypak is number one in the heater industry today.
End-of-Line Test: Every Raypak gas pool heater is plumbed and test-fired before it is put in the carton. This ensures that your heater will work right out of the box and continue to give you years of trouble- free operation.
Quality Check Points: The Raypak assembly process includes six final assembly quality check points that help to ensure that every Raypak gas heater is built correctly, and built to last.
CSA-Certified: All of Raypak’s gas pool heaters are CSA-certified and are tested by CSA to the ANSI Z21.56 standard.
The Raypak Versa 130 is the perfect choice for above ground pools and spas. The Versa 130 has up to 30% more BTU's than the competitors above ground pool heaters. More BTU's means quicker heat up. Extend your swim season, open your pool earlier and close it later. Your pool is always ready when you have a Raypak on duty.
PolyTuf Textured Powder Coating: The Raypak gas heater has a polyester-coated, non-corrosive cabinet that is more durable than solventborne- and waterborne-coated metal cabinets. Every piece of sheet metal goes through a 7-stage wash system, making certain the powder paint has a perfect bond. Underneath the tough, yet beautiful finish you will find galvanized metal that offers superior rust prevention and years of durable service.
Wind-Resistant Design: No need for fans to combat drafting problems. This heater is designed to draft naturally in outdoor installations with its exclusive low-profile design. It is so thoughtfully and carefully designed it actually protects itself from the things that tend to stifle ordinary pool and spa heaters. It delivers uninterrupted heating performance regardless of falling leaves, wind, airborne debris, rain, downdrafts, updrafts, sleet, snow, etc.
Polymer Headers: Polymer headers prevent rust stains from harming your pool or spa’s surface, giving you years of trouble-free swimming pleasure.
All-Copper-Fin-Tube Heat Exchanger: The fin tubes of the heat exchanger are each made from a single piece of extruded copper. This integral-fin design allows maximum heat transfer to be attained and maintained. Cupro-nickel is also available as an optional upgrade.
Stainless Steel Tube Sheet: Stainless steel tube sheets are used on all Raypak gas heaters. This allows for a completely nonferrous waterway, leaving your pool truly rust-free.
2" and 1-1/2” Water Connections: Supplied with every Raypak heater is a set of 1-1/2" PVC hose connections to make your installation secure and effortless. Easily accommodates 2” plumbing with optional adapters.
Burner Tray: Every burner tray is built to last, from the stainless steel burners to the aluminized metal used in the heat sensitive areas. Innovative design allows for the easy removal of the tray and burners for servicing.
Fire Tile: A ceramic fiber combustion box keeps your heater running efficiently while keeping the outside jacket cool. By using this space-age material the heater won't retain residual heat after it is turned off, allowing it to be installed without the use of costly metal heat sinks.
Fuel-Efficient: Energy-smart Raypak heaters consistently achieve the highest efficiency ratings. They exceed all federal and state standards.
Electronic Ignition Model: Electronic Ignition: Raypak electronic ignition heaters come standard with direct spark ignition flame safety controls. What this means is that the heater only comes on when there is a call for heat. This provides an energy-efficient way to control your heater’s gas usage by eliminating the need for a continuous pilot.
Electronic Ignition Model:Dual Voltage 120/240v: The Raypak electronic heater can easily be hooked up to 120v power via its own 3-1/2 foot built in power cord with 3-prong plug. It can also be wired for use with a conduit connection, this allows the installer to wire 120/240v directly to the transformer. No other small heater offers you this much flexibility.
Millivolt Model: Mechanical Thermostat: The Raypak millivolt gas heater comes with one mechanical thermostat. This control allows you to set your pool or spa temperature precisely at your favorite setting.
Millivolt Model: Millivolt Controls: No power source is required for the Raypak Millivolt heater. All operating electricity is supplied by the pilot thermocouple.
ISO 9001: We are proud to be an ISO 9001 registered manufacturing plant. It’s one more reason why Raypak is number one in the heater industry today.
End-of-Line Test: Every Raypak gas pool heater is plumbed and test-fired before it is put in the carton. This ensures that your heater will work right out of the box and continue to give you years of trouble- free operation.
Quality Check Points: The Raypak assembly process includes six final assembly quality check points that help to ensure that every Raypak gas heater is built correctly, and built to last.
CSA-Certified: All of Raypak’s gas pool heaters are CSA-certified and are tested by CSA to the ANSI Z21.56 standard.
- Electronic Ignition unit comes with 3 foot, 3 prong power cord
- Energy efficiencies operation, 81%
- Wind and rain resistant
- Accepts 2" plumbing with optional adapters
- Natural or Propane
- Millivolt or Electronic Ignition
- Comes with above ground pool hose connections
Electronic ignition models only
- Dual Voltage 120/240v The Raypak electronic heater can easily be hooked up to 120v power via its own 3-1/2 foot built in power cord with 3-prong plug. It can also be wired for use with a conduit connection, this allows the installer to wire 120/240v directly to the transformer. No other small heater offers you this much flexibility.
- Electronic Ignition Raypak electronic ignition heaters come standard with direct spark ignition flame safety controls. What this means is that the heater only comes on when there is a call for heat. This provides an energy-efficient way to control your heater’s gas usage by eliminating the need for a continuous pilot.
Millivolt models only
- Millivolt Controls No power source is required for the Raypak Millivolt heater. All operating electricity is supplied by the pilot thermocouple.
- Mechanical Thermostat The Raypak millivolt gas heater comes with one mechanical thermostat. This control allows you to set your pool or spa temperature precisely at your favorite setting.
Quality assurance
- Quality Check Points The Raypak assembly process includes six final assembly quality check points that help to ensure that every Raypak gas heater is built correctly, and built to last.
- CSA-Certified All of Raypak’s gas pool heaters are CSA-certified and are tested by CSA to the ANSI Z21.56 standard.
- ISO 9001 We are proud to be an ISO 9001 registered manufacturing plant. It’s one more reason why Raypak is number one in the heater industry today.
- End-of-Line Test Every Raypak gas pool heater is plumbed and test-fired before it is put in the carton. This ensures that your heater will work right out of the box and continue to give you years of trouble- free operation.
An electronic heater using propane gas is “EP”; an electronic heater using natural gas is “EN”. A Millivolt heater using propane gas is “MP”; a Millivolt heater using natural gas is “MN”.
Prefix “P” is for plastic (polymer) headers. Suffix “X” is for cupro-nickel tubing; “C” is for copper tubing
Example: P-R130A-EN-X = Plastic headers, 130 model size, electronic ignition, natural gas, cupro-nickel
Prefix “P” is for plastic (polymer) headers. Suffix “X” is for cupro-nickel tubing; “C” is for copper tubing
Example: P-R130A-EN-X = Plastic headers, 130 model size, electronic ignition, natural gas, cupro-nickel
