RAINBOW AUTOMATIC CHLORINE/BROMINE FEEDERS (Pentair)

Product Catalogs » Pentair Product Catalog 2010 » Water Maintenance » Water Maintenance

RAINBOW AUTOMATIC CHLORINE/BROMINE FEEDERS

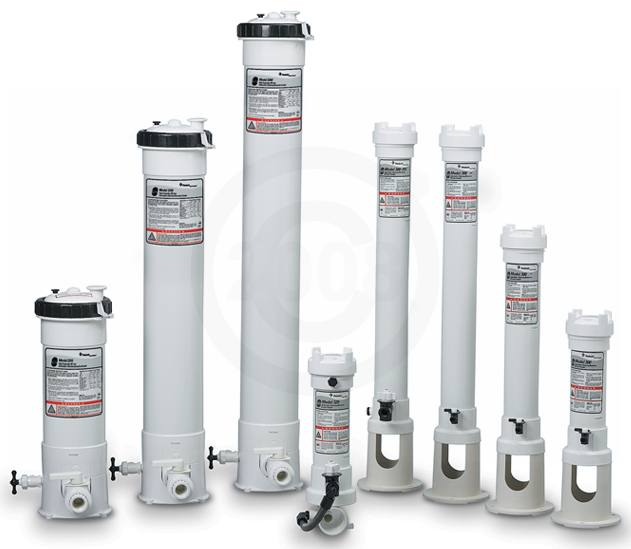

Rainbow Chlorine and Bromine Feeders

Click on a thumbnail to view larger image.

View All Thumbnails Hide Thumbnails

This product is part of
Pentair Product Catalog 2010

Description
Features
Notes
Request a Quote
Send to a Friend

Sanitization made super simple.

Rainbow Automatic Chlorine/Bromine Feeders high capacity feeders are one of the easiest ways to sanitize large residential and commercial swimming pools using either chlorine or bromine slow dissolve tablets or sticks. These heavy-duty, high capacity feeders provide automatic sanitization for pools up to 332,000 gallons.

In-Line Feeders: 320 Series. For permanent installation in return line of new or existing pools or spas. Installs in return line on pressure side of pump downstream of all equipment. Standard with 2 in. slip PVC fittings and adapters for 1-1/2 in.

Off-Line Feeders: 300 Series. Retrofits into existing pools or spas. Operates on pressure side of pump. Uses 1/4 in. feeder hoses, control valve and fittings.

All Rainbow Feeders are NSF Listed
50 PSI maximum operating pressure
No escaping gases
300 and 320 series filters available in clear amber for easy tablet level monitoring
Completely enclosed system - no special venting required

Rainbow Automatic Chlorine/Bromine feeders are for use with slow dissolving trichlor or bromine tablets only.

Product Information

Name:RAINBOW AUTOMATIC CHLORINE/BROMINE FEEDERS

Manufacturer:Pentair

Additional Contact Information

Fill out your contact information to request a quote for this product, or contact us at the number below.

Toll Free:	1 (800) 422-6023
Phone:	(503) 620-6174
Fax:	(503) 620-2237

Contact Information

First Name:Email:*Phone:Address 1:City:Postal Code:How did you find our Web site?	Last Name:Confirm Email:Country: Address 2:Region: Purchase Time Frame:
Comments:

*Required fields.

Product Information

Name:RAINBOW AUTOMATIC CHLORINE/BROMINE FEEDERS

Manufacturer:Pentair

Additional Contact Information

No Spam: We're committed to your privacy. The email addresses you enter will be used for this referral only.

CORROSION RESISTANT IN-LINE CHECK VALVES
STANDARD IN-LINE CHECK VALVES/BY-PASS VALVES
FEEDER KITS
LIFEGARD SILICONE LUBRICANT
TUBING AND MISCELLANEOUS PARTS

IN-LINE FEEDERS (RAINBOW AUTOMATIC CHLORINE/BROMINE FEEDERS)

[^top]

Qty

Description

Our Price (USD)


Send to a Friend

Part#: R171096

MODEL: 320 - Holds 11 large or 98 small Bromine or slow dissolving Trichlor tablets. Treats 6500 to 27000 gallons bottom feed and 18000 to - Inline Feeder


Send to a Friend

Part#: R171100

MODEL: 322 - Low profile spa feeder. Holds 1/2 lb. of 1 in. tablets. - Inline Feeder


Send to a Friend

Part#: R171218

MODEL: 320C - Holds 11 large or 98 small Bromine or slow dissolving Trichlor tablets. Treats 6500 gallons to in 27000 a gallons top in feed a configuration bottom with feed see-through configuration amber and body. 18000 to 70000 gallons in top feed configuration with see-through amber body - Inline Feeder

OFF-LINE FEEDERS (RAINBOW AUTOMATIC CHLORINE/BROMINE FEEDERS)

[^top]

Qty

Description

Our Price (USD)


Send to a Friend

Part#: R171016

MODEL: 300 - Holds 11 large or 98 small tablets. Treats 12000 to 48000 gallons - Off-line Feeder


Send to a Friend

Part#: R171022

MODEL: 300C - Holds 11 large or 98 small tablets. Treats 12000 to 48000 gallons amber body. with see through amber body - Off-line Feeder


Send to a Friend

Part#: R171026

MODEL: 302 - Spa feeder. Includes spa chamber. Treats 500 to 2000 gallons. Holds 15 small tablets - Off-line Feeder


Send to a Friend

Part#: R171056

MODEL: 300-19 - Spa feeder includes double-capacity 19 in. chamber. Treats 13000 to 52000 gallons - Off-line Feeder


Send to a Friend

Part#: R171066

MODEL: 300-29 - Spa feeder includes triple-capacity 29 in. chamber. Treats 14000 to 57000 gallons - Off-line Feeder

COMMERCIAL AND HIGH CAPACITY FEEDERS (RAINBOW AUTOMATIC CHLORINE/BROMINE FEEDERS)

[^top]

Qty

Description

Our Price (USD)


Send to a Friend

Part#: R171070

MODEL: 300-29X - Heavy duty 1/2 in. control valve and tubing optimizes flow and erosion to provide larger amounts of sanitizer. Dispenses 8.5 lbs. of 1 in. Trichlor Tablets in 24 hours. Holds 29 large or 237 small tablets. Treats 80,000 to 322,000 gallons - Commercial & High Capacity Feeder


Send to a Friend

Part#: R171215

MODEL: HC-3315 - High capacity for 1 in. hard plumbing installations. Holds 15 lbs. of tablets. Treats up to 20,200 gallons with Bromine and up to 97,600 gallons with Trichlor - Commercial & High Capacity Feeder


Send to a Friend

Part#: R171230

MODEL: HC-3330 - High capacity for 1 in. hard plumbing installations. Holds 30 lbs. of tablets. Treats up to 40,000 gallons with Bromine and up to 160,000 gallons with Trichlor - Commercial & High Capacity Feeder


Send to a Friend

Part#: R171240

MODEL: HC-3340 - High capacity for 1 in. hard plumbing installations. Holds 40 lbs. of tablets. Treats up to 61,000 gallons with Bromine and up to 332,000 gallons with Trichlor - Commercial & High Capacity Feeder

EXTENSIONS (RAINBOW AUTOMATIC CHLORINE/BROMINE FEEDERS)

[^top]

Qty

Description

Our Price (USD)


Send to a Friend

Part#: R172087

10 in. Extension doubles capacity


Send to a Friend

Part#: R172283

20 in. Extension triples capacity

FLOW INDICATING DEVICES (RAINBOW AUTOMATIC CHLORINE/BROMINE FEEDERS)

[^top]

Qty

Description

Our Price (USD)


Send to a Friend

Part#: R172080

Flow Indicating Device. Clear polycarbonate with Teflon indicating ball. Flow rate of 0 to 1 gpm. Designed for 1/4 in. inline pipe thread. Includes Check Valve


Send to a Friend

Part#: R172082

Flow Rate Indicator. For high rate feeders with in. feed lines.


Send to a Friend

Part#: R172276

Commercial Flow Indicator for use with 320, 322, 300-29X or feeders with 1/2 in. feed lines.


Send to a Friend

Part#: R172627

Corrosion Resistant Flow Indicator Kit. For new installations of 300-29X. Includes flow indicator. Saddle clamp, fittings and 1/2 in. corrosion resistant check valve.

CORROSION RESISTANT IN-LINE CHECK VALVES (RAINBOW AUTOMATIC CHLORINE/BROMINE FEEDERS)

[^top]

Qty

Description

Our Price (USD)


Send to a Friend

Part#: R172288

Check Valve 1-1/2 in. or 2 in. Slip, 2 lb. spring - Corrosion Resistant, In-line


Send to a Friend

Part#: R172323

Check Valve 1/4 in. tube x tube - Corrosion Resistant, In-line


Send to a Friend

Part#: R172324

Check Valve 1/2 in. tube x tube - Corrosion Resistant, In-line


Send to a Friend

Part#: R172324NS

Special check valve for outward flow on below valve water (ball) installations. 1/2 in. tube x tube check 300-29X - Corrosion Resistant, In-line

STANDARD IN-LINE CHECK VALVES/BY-PASS VALVES (RAINBOW AUTOMATIC CHLORINE/BROMINE FEEDERS)

[^top]

Qty

Description

Our Price (USD)


Send to a Friend

Part#: R172305

By-pass Valve (1-1/2 in. or 2 in.) 12 lb. spring, slip fittings - Standard In-line


Send to a Friend

Part#: R172316

Check Valve (1-1/2 in. or 2 in.) 1/2 in. spring, slip fittings. Great for blowers - Standard In-line

FEEDER KITS (RAINBOW AUTOMATIC CHLORINE/BROMINE FEEDERS)

[^top]

Qty

Description

Our Price (USD)


Send to a Friend

Part#: 200013

300 & 320 Replacement Kit. Includes: saddle clamp, saddle gasket, and saddle tube fitting - Feeder Kit


Send to a Friend

Part#: 200014

300-29X Replacement Kit. Includes: saddle clamp, saddle gasket, and saddle tube fitting - Feeder Kit

LIFEGARD SILICONE LUBRICANT (RAINBOW AUTOMATIC CHLORINE/BROMINE FEEDERS)

[^top]

Qty

Description

Our Price (USD)


Send to a Friend

Part#: R172036

3/4 ounce


Send to a Friend

Part#: R172351

3/4 ounce, in counter display

TUBING AND MISCELLANEOUS PARTS (RAINBOW AUTOMATIC CHLORINE/BROMINE FEEDERS)

[^top]

Qty

Description

Our Price (USD)


Send to a Friend

Part#: 200017

Compression nut for 300 Series


Send to a Friend

Part#: R171099

Hi-Flo Kit for 320 and 322 Allows greater dispensing rate. Includes 6 ft. of 1/2 in. i.d. tubing, 1/2 in. check valve and all fittings.


Send to a Friend

Part#: R172037

Spa Chamber for 300, 302, 320


Send to a Friend

Part#: R172093

5/8 in. o.d. x 1/2 in. i.d. Sold in roll


Send to a Friend

Part#: R172258

Spa Chamber for 322


Send to a Friend

Part#: R172367

Winterizing or Isolation Plug. Attaches to control alve of 300, 302, 300-19 or 300-29


Send to a Friend

Part#: R18754

3/8 in. o.d. x 1/4 in. i.d. Sold in roll
