The #1 sand filter in the world.

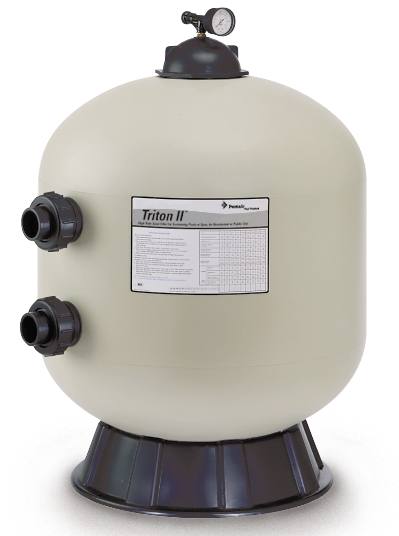

The #1 sand filter in the world, Triton™ II Side Mount Filters are the result of nearly 50 years of product evolution and refinement. It has set the industry standard for effectiveness, efficiency, long runs between service, and providing years of dependable, low maintenance operation. Triton™ II Side Mount Filters feature a special internal design that keeps the sand bed level, ensuring even water flow, and resulting in the most efficient filtration possible.


Now Available with ClearPro™ Technology for 60% Cleaner Water.


Triton™ II Side Mount Filterss with ClearPro™ technology, remove particles up to five times smaller than traditional sand filters…well below what your eye can detect for water that truly sparkles with clarity. The ClearPro secret is a proprietary, porous tube that water must pass through before re-entering the pool. It creates a final barrier to the very smallest particles that sand cannot trap, including the finest dust particles, algae and pollens.
  • Bulkhead connectors are threaded for easy installation and service
  • Combination sand and water drain makes servicing and winterizing fast and easy
  • Maximum Operating Pressure 50 psi
  • Internal air bleed
  • Heavy-duty closure provides easy inspection, and features an easy-to-read pressure gauge with air relief valve
  • Swing-away diffuser allows instant access to sand and all internal parts
  • All internal parts are threaded for ease of service
Valves must be purchased separately.
Product Information
Name:TRITON™ II SIDE MOUNT FILTERS
Manufacturer:Pentair
Additional Contact Information

Fill out your contact information to request a quote for this product, or contact us at the number below.

Toll Free:1 (800) 422-6023
Phone:(503) 620-6174
Fax:(503) 620-2237
Contact Information
*First Name:*Email:*Phone:Address 1:City:Postal Code:How did you find our Web site?*Last Name:*Confirm Email:Country:
Address 2:Region:
Purchase Time Frame:
Comments:
*Required fields.
Send to a Friend

Recommend this product to a friend by entering up to 4 complete email addresses below.

Product Information
Name:TRITON™ II SIDE MOUNT FILTERS
Manufacturer:Pentair
Additional Contact Information

No Spam: We're committed to your privacy. The email addresses you enter will be used for this referral only.

TRITON II SAND FILTERS (TRITON™ II SIDE MOUNT FILTERS) [^top]
Qty Description   Our Price (USD)
Part#: 140210
MODEL: TR 100, EFFECTIVE FILTRTATION AREA (SQ FT): 4.91, FLOW RATE (GPM): 98, FLOW RATE (GPM COMM): 74, TURNOVER CAPACITY (GALLONS) 8 HOUR: 47040, TURNOVER CAPACITY (GALLONS) 10 HOUR: 58800, TURNOVER CAPACITY (GALLONS) 12 HOUR: 70560, FILTER MEDIA PEA GRAVEL REQUIRED (LBS): 150, FILTER MEDIA SAND REQUIRED (LBS): 450, ALL SAND REQUIRED (LBS): 600
Request a Quote

Part#: 140236
MODEL: TR 40, EFFECTIVE FILTRTATION AREA (SQ FT): 1.92, FLOW RATE (GPM): 38, FLOW RATE (GPM COMM): 38, TURNOVER CAPACITY (GALLONS) 8 HOUR: 18240, TURNOVER CAPACITY (GALLONS) 10 HOUR: 22800, TURNOVER CAPACITY (GALLONS) 12 HOUR: 27360, FILTER MEDIA PEA GRAVEL REQUIRED (LBS): 50, FILTER MEDIA SAND REQUIRED (LBS): 125, ALL SAND REQUIRED (LBS): 175
Request a Quote

Part#: 140243
MODEL: TR 140, EFFECTIVE FILTRTATION AREA (SQ FT): 7.06, FLOW RATE (GPM): 141, FLOW RATE (GPM COMM): 106, TURNOVER CAPACITY (GALLONS) 8 HOUR: 67680, TURNOVER CAPACITY (GALLONS) 10 HOUR: 84600, TURNOVER CAPACITY (GALLONS) 12 HOUR: 101520, FILTER MEDIA PEA GRAVEL REQUIRED (LBS): 275, FILTER MEDIA SAND REQUIRED (LBS): 650, ALL SAND REQUIRED (LBS): 925
Request a Quote

Part#: 140249
MODEL: TR 50, EFFECTIVE FILTRTATION AREA (SQ FT): 2.46, FLOW RATE (GPM): 49, FLOW RATE (GPM COMM): 49, TURNOVER CAPACITY (GALLONS) 8 HOUR: 23520, TURNOVER CAPACITY (GALLONS) 10 HOUR: 29400, TURNOVER CAPACITY (GALLONS) 12 HOUR: 35280, FILTER MEDIA PEA GRAVEL REQUIRED (LBS): 50, FILTER MEDIA SAND REQUIRED (LBS): 175, ALL SAND REQUIRED (LBS): 225
Request a Quote

Part#: 140264
MODEL: TR 60, EFFECTIVE FILTRTATION AREA (SQ FT): 3.14, FLOW RATE (GPM): 63, FLOW RATE (GPM COMM): 63, TURNOVER CAPACITY (GALLONS) 8 HOUR: 30240, TURNOVER CAPACITY (GALLONS) 10 HOUR: 37800, TURNOVER CAPACITY (GALLONS) 12 HOUR: 45360, FILTER MEDIA PEA GRAVEL REQUIRED (LBS): 75, FILTER MEDIA SAND REQUIRED (LBS): 250, ALL SAND REQUIRED (LBS): 325
Request a Quote


ACCESSORIES (TRITON™ II SIDE MOUNT FILTERS) [^top]
Qty Description   Our Price (USD)
Part#: 261173
1-1/2 in. MPV, for sand filters (SM 10-3)
Request a Quote

Part#: 261047
2 in. PVC Slide valve w/o plumbing, for D.E. & sand filters
Request a Quote

Part#: 261049
2 in. HiFlow valve, no plumbing
Request a Quote

Part#: 261050
2 in. HiFlow w/plumbing, for sand filters
Request a Quote

Part#: 261055
2 in. MPV, for sand filters (SM 20-3)
Request a Quote

Part#: 261165
2 in. PVC Slide valve for D.E. filters & sand filters
Request a Quote

Part#: 263034
2 in. ABS Slide valve
Request a Quote

Part#: 263051
Push Pull 7.5" Center Valve
Request a Quote
