One cleaning for an entire season?

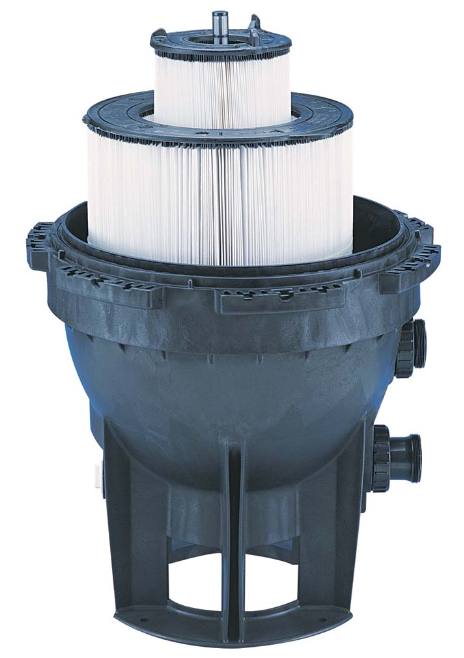

System:3® Modular Media Filters handle 2-3 times more dirt than other filters to deliver maintenance-free performance for up to a full season. Featuring perfectly balanced flow and an integral manifold design, these filters are engineered to deliver the ultimate in labor savings. System:3® Modular Media Filters are ideal for inground pools, inground hot tubs and water features.


An Eco Select™ Choice: Water flows very efficiently through System:3® Modular Media Filters filters allowing the use of smaller pumps or lower pump speeds to minimize energy use. And when consumers rinse cartridges rather than backwash, they can significantly reduce water use, too.
  • Low Maintenance – Complete media coverage combined with shallow pleats means greater dirt holding capabilities, resulting in longer filter cycles and less cleaning
  • Quick Service – The shallow pleat design allows you to simply hose off the elements in a matter of minutes, making servicing a snap
  • Dual Drain Plugs – Side plug available for plumbing to waste, while the bottom plug will drain entire filter
  • Patented Design – The patented, innovative balanced flow design first introduced with the System:3 Mod Media is still the standard of the industry
  • Typical Installation – Inground pools, inground hot tubs, and water features
  • Quality Construction – Durable two-piece tank housing constructed of Dura-Glas®, Sta-Rite's industry leading glass-reinforced composite resin
  • Safe – Posi-Lok™ clamps provide safe, easy access to tank internals
Product Information
Name:SYSTEM:3® MODULAR MEDIA FILTERS
Manufacturer:Sta-Rite
Additional Contact Information

Fill out your contact information to request a quote for this product, or contact us at the number below.

Toll Free:1 (800) 422-6023
Phone:(503) 620-6174
Fax:(503) 620-2237
Contact Information
*First Name:*Email:*Phone:Address 1:City:Postal Code:How did you find our Web site?*Last Name:*Confirm Email:Country:
Address 2:Region:
Purchase Time Frame:
Comments:
*Required fields.
Send to a Friend

Recommend this product to a friend by entering up to 4 complete email addresses below.

Product Information
Name:SYSTEM:3® MODULAR MEDIA FILTERS
Manufacturer:Sta-Rite
Additional Contact Information

No Spam: We're committed to your privacy. The email addresses you enter will be used for this referral only.

SYSTEM: 3 MODULAR MEDIA FILTER - SM SERIES (SYSTEM:3® MODULAR MEDIA FILTERS) [^top]
Qty Description   Our Price (USD)
Part#: S7M120
FILTER AREA (SQ FT): 300, OPTIMAL PERFOMANCE AT THIS GPM: 50 - 80, FLOW RATED GPM (SQ FT): 50 - 100, TURNOVER CAPACITY (IN GALLONS) (FLOW RATE X 60 X HOURS) 6 HOUR: 18 - 36000, TURNOVER CAPACITY (IN GALLONS) (FLOW RATE X 60 X HOURS) 8 HOUR: 24 - 48000, TURNOVER CAPACITY (IN GALLONS) (FLOW RATE X 60 X HOURS) 10 HOUR: 30 - 60000, TANK PORT SIZE: 2” - System:3 Modular Media Filter - SM Series		 Request a Quote

Part#: S8M150
FILTER AREA (SQ FT): 450, OPTIMAL PERFOMANCE AT THIS GPM: 50 - 110, FLOW RATED GPM (SQ FT): 50 - 124, TURNOVER CAPACITY (IN GALLONS) (FLOW RATE X 60 X HOURS) 6 HOUR: 18 - 45000, TURNOVER CAPACITY (IN GALLONS) (FLOW RATE X 60 X HOURS) 8 HOUR: 24 - 60000, TURNOVER CAPACITY (IN GALLONS) (FLOW RATE X 60 X HOURS) 10 HOUR: 30 - 74000, TANK PORT SIZE: 2” - System:3 Modular Media Filter - SM Series		 Request a Quote

Part#: S7M400
FILTER AREA (SQ FT): 400, OPTIMAL PERFOMANCE AT THIS GPM: 50 - 90, FLOW RATED GPM (SQ FT): 50 - 115, TURNOVER CAPACITY (IN GALLONS) (FLOW RATE X 60 X HOURS) 6 HOUR: 18 - 41000, TURNOVER CAPACITY (IN GALLONS) (FLOW RATE X 60 X HOURS) 8 HOUR: 24 - 558000, TURNOVER CAPACITY (IN GALLONS) (FLOW RATE X 60 X HOURS) 10 HOUR: 30 - 69000, TANK PORT SIZE: 2” - System:3 Modular Media Filter - SM Series		 Request a Quote

Part#: S8M500
FILTER AREA (SQ FT): 500, OPTIMAL PERFOMANCE AT THIS GPM: 50 - 115, FLOW RATED GPM (SQ FT): 50 - 130, TURNOVER CAPACITY (IN GALLONS) (FLOW RATE X 60 X HOURS) 6 HOUR: 18 - 46000, TURNOVER CAPACITY (IN GALLONS) (FLOW RATE X 60 X HOURS) 8 HOUR: 24 - 62400, TURNOVER CAPACITY (IN GALLONS) (FLOW RATE X 60 X HOURS) 10 HOUR: 30 - 78000, TANK PORT SIZE: 2” - System:3 Modular Media Filter - SM Series		 Request a Quote


ACCESSORIES (SYSTEM:3® MODULAR MEDIA FILTERS) [^top]
Qty Description   Our Price (USD)
Part#: PKG 188
QTY: Pkg. of 2 - Union x 2" Slip Adapter		 Request a Quote

Part#: PKG 189
QTY: Pkg. of 2 - Union x 2" FPT Adapter		 Request a Quote

Part#: 77703-0100
QTY: Pkg. of 2 - Union x 1-1/2" FPT Adapter		 Request a Quote

Part#: 77703-0101
QTY: Pkg. of 2 - Union x 1-1/2" Slip Adapter		 Request a Quote

Part#: 25021-0200S
SIZE: 100 sq. ft. - Inner Replacement Module for S7M120		 Request a Quote

Part#: 25022-0201S
SIZE: 200 sq. ft. - Outer Replacement Module for S7M120		 Request a Quote

Part#: 25021-0223S
SIZE: 136 sq. ft. - Inner Replacement Module for S7M400		 Request a Quote

Part#: 25022-0224S
SIZE: 264 sq. ft. - Outer Replacement Module for S7M400		 Request a Quote

Part#: 25021-0202S
SIZE: 191 sq. ft. - Inner Replacement Module for S8M150		 Request a Quote

Part#: 25022-0203S
SIZE: 259 sq. ft. - Outer Replacement Module for S8M150		 Request a Quote

Part#: 25021-0224S
SIZE: 209 sq. ft. - Inner Replacement Module for S8M500		 Request a Quote

Part#: 25022-0225S
SIZE: 291 sq. ft. - Outer Replacement Module for S8M500		 Request a Quote

Part#: 25021-0021
Modular Media Conversion Kit – S7M120/S7M400 (Order Modules Separately)		 Request a Quote

Part#: 25021-0025
Modular Media Conversion Kit – S8M150/S8M500 (Order Modules Separately)		 Request a Quote
