Strong performer. Quiet leader.

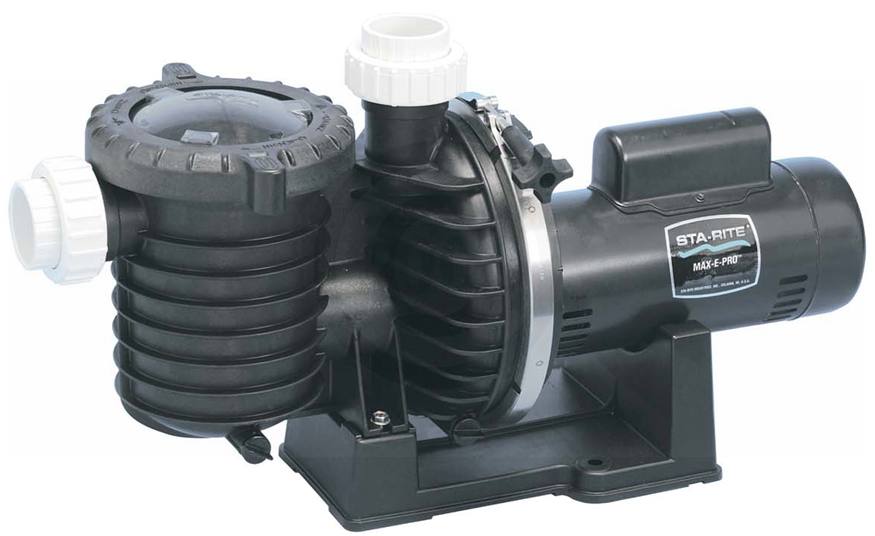

The Max-E-Pro™ Pumps are Sta-Rite's premier pumps and are featured in many showcase pool installations. They didn't get there by chance. Pool professionals prefer the Max-E-Pro™ Pumps for their powerful, efficient performance and extremely quiet operation.
  • Noryl® Impeller – Withstands the toughest water environments
  • Viton Shaft Seal – Longer-lasting seal stands up to the harshest environments
  • Self-lubricating Lid O-ring – Does not require lubricant
  • Superior Hydraulic Design – Moves larger volumes of water, resulting in lower operating costs
  • Typical Installation – Inground pools, pool/spa combinations, inground spas, fountains and water features
  • Self-priming – Suction lift up to 15' above water level
  • Easy-to-Install – 2" ports include external and internal threads for more plumbing options
ENERGY EFFICIENT FULL-RATED SINGLE SPEED MODELS, ENERGY EFFICIENT UP-RATED SINGLE SPEED MODELS, UP-RATED SINGLE SPEED MODELS, UP-RATED TWO-SPEED MODELS: Includes two 1/2 union assemblies - 2" slip.


50 HZ MODELS: Unions not included.
Product Information
Name:MAX-E-PRO™ PUMPS
Manufacturer:Sta-Rite
Additional Contact Information

Fill out your contact information to request a quote for this product, or contact us at the number below.

Toll Free:1 (800) 422-6023
Phone:(503) 620-6174
Fax:(503) 620-2237
Contact Information
*First Name:*Email:*Phone:Address 1:City:Postal Code:How did you find our Web site?*Last Name:*Confirm Email:Country:
Address 2:Region:
Purchase Time Frame:
Comments:
*Required fields.
Send to a Friend

Recommend this product to a friend by entering up to 4 complete email addresses below.

Product Information
Name:MAX-E-PRO™ PUMPS
Manufacturer:Sta-Rite
Additional Contact Information

No Spam: We're committed to your privacy. The email addresses you enter will be used for this referral only.

Energy Efficient Full-Rated Single Speed Models (MAX-E-PRO™ PUMPS) [^top]
Qty Description   Our Price (USD)
Part#: P6E6C-204L
VOLTAGE: 115/230, FULL LOAD AMPS: 11.0/5.5, NOMINAL HP: 1/2, SF: 1.90, SFHP: 0.95, PORT SIZE (NPT)SUCT. & DISCH.: 2" - Energy Efficient Full-Rated Single Speed Model		 Request a Quote

Part#: P6E6D-205L
VOLTAGE: 115/230, FULL LOAD AMPS: 13.8/6.9, NOMINAL HP: 3/4, SF: 1.67, SFHP: 1.25, PORT SIZE (NPT)SUCT. & DISCH.: 2" - Energy Efficient Full-Rated Single Speed Model		 Request a Quote

Part#: P6E6E-206L
VOLTAGE: 115/230, FULL LOAD AMPS: 16.0/8.0, NOMINAL HP: 1, SF: 1.65, SFHP: 1.65, PORT SIZE (NPT)SUCT. & DISCH.: 2" - Energy Efficient Full-Rated Single Speed Model		 Request a Quote

Part#: P6E6F-207L
VOLTAGE: 230, FULL LOAD AMPS: 10.4, NOMINAL HP: 1/2, SF: 1.47, SFHP: 2.2, PORT SIZE (NPT)SUCT. & DISCH.: 2" - Energy Efficient Full-Rated Single Speed Model		 Request a Quote

Part#: P6E6G-208L
VOLTAGE: 230, FULL LOAD AMPS: 11.2, NOMINAL HP: 2, SF: 1.30, SFHP: 2.6, PORT SIZE (NPT)SUCT. & DISCH.: 2" - Energy Efficient Full-Rated Single Speed Model		 Request a Quote

Part#: P6E6H-209L
VOLTAGE: 230, FULL LOAD AMPS: 15.8, NOMINAL HP: 3, SF: 1.15, SFHP: 3.45, PORT SIZE (NPT)SUCT. & DISCH.: 2" - Energy Efficient Full-Rated Single Speed Model		 Request a Quote


Energy Efficient Up-Rated Single Speed Models (MAX-E-PRO™ PUMPS) [^top]
Qty Description   Our Price (USD)
Part#: P6EA6E-205L
VOLTAGE: 115/230, FULL LOAD AMPS: 13.8/6.9, NOMINAL HP: 1, SF: 1.25, SFHP: 1.25, PORT SIZE (NPT)SUCT. & DISCH.: 2" - Energy Efficient Up-Rated Single Speed Model		 Request a Quote

Part#: P6EA6F-206L
VOLTAGE: 115/230, FULL LOAD AMPS: 16.0/8.0, NOMINAL HP: 1-1/2, SF: 1.10, SFHP: 1.65, PORT SIZE (NPT)SUCT. & DISCH.: 2" - Energy Efficient Up-Rated Single Speed Model		 Request a Quote

Part#: P6EAA6F-216L
VOLTAGE: 230, FULL LOAD AMPS: 10.4, NOMINAL HP: 1-3/4, SF: 1.25, SFHP: 1.93, PORT SIZE (NPT)SUCT. & DISCH.: 2" - Energy Efficient Up-Rated Single Speed Model		 Request a Quote

Part#: P6EA6G-207L
VOLTAGE: 230, FULL LOAD AMPS: 10.4, NOMINAL HP: 2, SF: 1.10, SFHP: 2.2, PORT SIZE (NPT)SUCT. & DISCH.: 2" - Energy Efficient Up-Rated Single Speed Model		 Request a Quote

Part#: P6EAA6G-208L
VOLTAGE: 230, FULL LOAD AMPS: 11.2, NOMINAL HP: 2-1/2, SF: 1.04, SFHP: 2.6, PORT SIZE (NPT)SUCT. & DISCH.: 2" - Energy Efficient Up-Rated Single Speed Model		 Request a Quote


Up-Rated Single Speed Models (MAX-E-PRO™ PUMPS) [^top]
Qty Description   Our Price (USD)
Part#: P6RA6E-205L
VOLTAGE: 115/230, FULL LOAD AMPS: 15.3/7.6, NOMINAL HP: 1, SF: 1.25, SFHP: 1.25, PORT SIZE (NPT)SUCT. & DISCH.: 2" - Up-Rated Single Speed Model		 Request a Quote

Part#: P6RA6EF-206L
VOLTAGE: 115/230, FULL LOAD AMPS: 19.2/9.6, NOMINAL HP: 1-1/2, SF: 1.10, SFHP: 1.65, PORT SIZE (NPT)SUCT. & DISCH.: 2" - Up-Rated Single Speed Model		 Request a Quote

Part#: P6RAA6F-216L
VOLTAGE: 230, FULL LOAD AMPS: 12, NOMINAL HP: 1-3/4, SF: 1.25, SFHP: 1.93, PORT SIZE (NPT)SUCT. & DISCH.: 2" - Up-Rated Single Speed Model		 Request a Quote

Part#: P6RA6G-207L
VOLTAGE: 230, FULL LOAD AMPS: 12, NOMINAL HP: 2, SF: 1.10, SFHP: 2.2, PORT SIZE (NPT)SUCT. & DISCH.: 2" - Up-Rated Single Speed Model		 Request a Quote


Up-Rated Two-Speed Models (MAX-E-PRO™ PUMPS) [^top]
Qty Description   Our Price (USD)
Part#: P6RA6YF-206L
VOLTAGE: 230, FULL LOAD AMPS: 9.2/2.5, NOMINAL HP: 1-1/2, SF: 1.10, SFHP: 1.65, PORT SIZE (NPT)SUCT. & DISCH.: 2" - Up-Rated Two-Speed Model		 Request a Quote

Part#: P6RA6YG-207L
VOLTAGE: 230, FULL LOAD AMPS: 10.1/3.7, NOMINAL HP: 2, SF: 1.10, SFHP: 2.2, PORT SIZE (NPT)SUCT. & DISCH.: 2" - Up-Rated Two-Speed Model		 Request a Quote


50 Hz Models (MAX-E-PRO™ PUMPS) [^top]
Qty Description   Our Price (USD)
Part#: 5P6R6D-209
MOTOR/VOLTAGE: 115/230, FULL LOAD AMPS: 12.2/6.1, NOMINAL HP: 3/4, SF: 1.27, SFHP: 0.95, PORT SIZE (NPT)SUCT. & DISCH.: 2" - 50 Hz Model		 Request a Quote

Part#: 5P6R6D3-209
MOTOR/VOLTAGE: 220-240/380-415, FULL LOAD AMPS: 3.6/2.1, NOMINAL HP: 3/4, SF: 1.27, SFHP: 0.95, PORT SIZE (NPT)SUCT. & DISCH.: 2" - 50 Hz Model		 Request a Quote

Part#: 5P6R6E-210
MOTOR/VOLTAGE: 115/230, FULL LOAD AMPS: 15.4/7.7, NOMINAL HP: 1, SF: 1.25, SFHP: 1.25, PORT SIZE (NPT)SUCT. & DISCH.: 2" - 50 Hz Model		 Request a Quote

Part#: 5P6R6E3-210
MOTOR/VOLTAGE: 220-240/380-415, FULL LOAD AMPS: 4.0/2.3, NOMINAL HP: 1, SF: 1.25, SFHP: 1.25, PORT SIZE (NPT)SUCT. & DISCH.: 2" - 50 Hz Model		 Request a Quote

Part#: 5P6R6F-211
MOTOR/VOLTAGE: 115/230, FULL LOAD AMPS: 19.4/9.7, NOMINAL HP: 1-1/2, SF: 1.10, SFHP: 1.65, PORT SIZE (NPT)SUCT. & DISCH.: 2" - 50 Hz Model		 Request a Quote

Part#: 5P6R6F3-211
MOTOR/VOLTAGE: 220-240/380-415, FULL LOAD AMPS: 5.15/3.0, NOMINAL HP: 1-1/2, SF: 1.10, SFHP: 1.65, PORT SIZE (NPT)SUCT. & DISCH.: 2" - 50 Hz Model		 Request a Quote

Part#: 5P6R6G-212
MOTOR/VOLTAGE: 230, FULL LOAD AMPS: 10.5, NOMINAL HP: 2, SF: 1.10, SFHP: 2.20, PORT SIZE (NPT)SUCT. & DISCH.: 2" - 50 Hz Model		 Request a Quote

Part#: 5P6R6G3-212
MOTOR/VOLTAGE: 220-240/380-415, FULL LOAD AMPS: 6.6/3.8, NOMINAL HP: 2, SF: 1.10, SFHP: 2.20, PORT SIZE (NPT)SUCT. & DISCH.: 2" - 50 Hz Model		 Request a Quote

Part#: 5P6R6H-213
MOTOR/VOLTAGE: 230, FULL LOAD AMPS: 13.9, NOMINAL HP: 3, SF: 1.00, SFHP: 3.00, PORT SIZE (NPT)SUCT. & DISCH.: 2" - 50 Hz Model		 Request a Quote

Part#: 5P6R6H3-213
MOTOR/VOLTAGE: 220-240/380-415, FULL LOAD AMPS: 8.0/4.7, NOMINAL HP: 3, SF: 1.00, SFHP: 3.00, PORT SIZE (NPT)SUCT. & DISCH.: 2" - 50 Hz Model		 Request a Quote


Accessories (MAX-E-PRO™ PUMPS) [^top]
Qty Description   Our Price (USD)
Part#: 77703-0100
SIZE: 2" Union Half x 1-1/2" FPT, QTY: 2		 Request a Quote

Part#: 77703-0101
SIZE: 2" Union Half x 1-1/2" Slip, QTY: 2		 Request a Quote

Part#: PKG 188
SIZE: 2" Union Half x 2" Slip, QTY: 21		 Request a Quote

Part#: PKG 189
SIZE: 2" Union Half x 2" FPT, QTY: 2		 Request a Quote
